\(QS31_{5}^{(1)}\)
Description

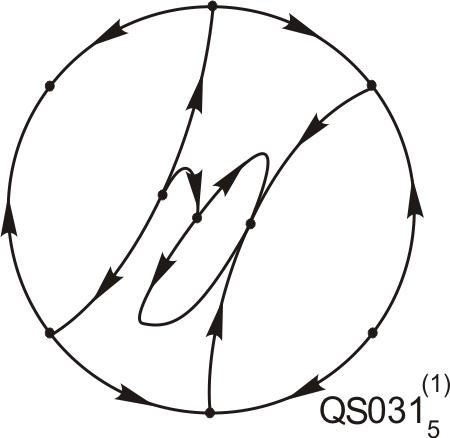

Phase Portrait
Topological Invariants
| TCSP | Fin Sep | Inf Sep |
|---|---|---|
| \(31\) | \(433\) | \(110110\) |
Example
The quadratic differential system
\[\begin{cases} \dot{x} = (1-e) \, x^{2}+2 \, h \, x \, y+(n-1-2 \, h) \, y^{2} \\ \dot{y} = y+c \, (1-e) \, x^{2}+(2+2 \, h-n) \, (1-e) \, x \, y-2 \, c \, x \, y+(c-2-2 \, h+2 \, n) \, y^{2} \end{cases}\]
with parameters: \(h = \frac{-11}{10}, \quad c = \frac{3}{2}, \quad n = -1, \quad e = 0.1\)
has the following phase portrait done with P4. If you want, you may download the P4 file here.
The phase portrait appears in the following papers
- With name \(U^1_{A60}\) in {J. C. Artés, J. Llibre and A. C. Rezende}, Structurally unstable quadratic vector fields of codimension one, Birkhäuser/Springer, Cham, 2018, vi+267 pp.
Bifurcations in codimension 0
- Bifurcation interface between the codimension 0 portrait \(QS19_{3}^{(0)}\) and \(QS5_{2}^{(0)}\).
